What Is a Local Area Network (LAN)? How LANs Work

This guide covers: What Is a Local Area Network (LAN)? How LANs Work.

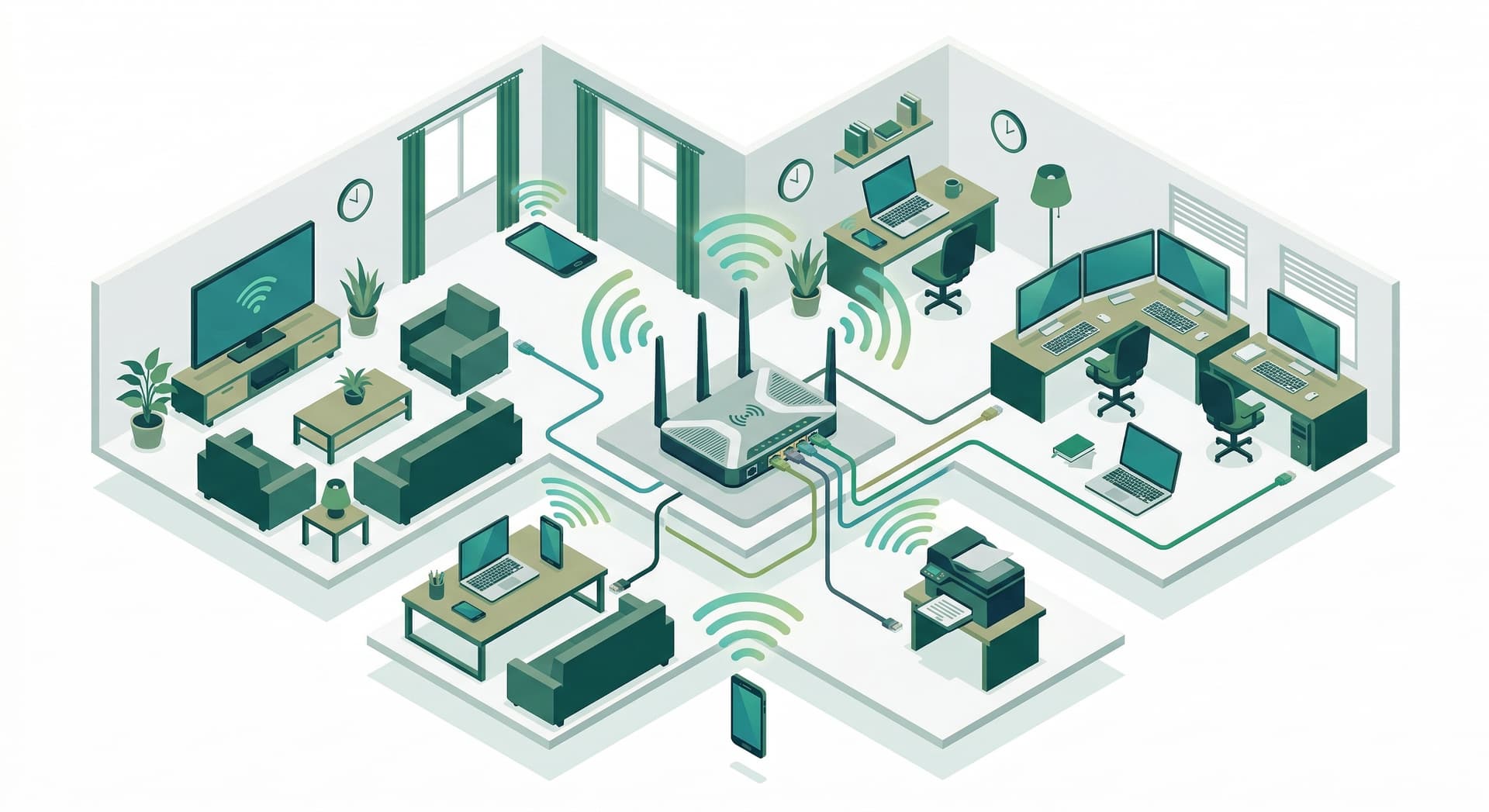

A local area network (LAN) connects computers, phones, printers, and other devices within a limited physical space — a home, an office floor, a school building, or a small campus. It is the most common type of computer network and the foundation on which nearly all digital communication in buildings is built. If you have ever connected a laptop to your home WiFi or plugged a desktop into an office Ethernet port, you were using a LAN.

How a Local Area Network Works

At its simplest, a LAN is a set of devices that can exchange data with each other because they share a common communication link. That link can be a physical cable (Ethernet) or a wireless signal (WiFi). The devices send data in small units called packets, and networking equipment — primarily routers and switches — directs those packets to the correct destination.

A switch operates at Layer 2 of the networking stack. It reads the MAC address on each incoming frame and forwards it only to the port where the destination device is connected. This keeps traffic efficient: a file transfer between two computers does not flood every other device on the network.

A router operates at Layer 3. It connects the LAN to external networks — most commonly the internet. When a device on the LAN requests a web page, the router forwards that request to the ISP and returns the response to the correct internal device. In home networks, the router, switch, WiFi access point, and modem are often combined into a single box provided by the ISP.

Every device on a LAN receives a private IP address — typically assigned automatically by a DHCP server running on the router. These private addresses (like 192.168.1.x or 10.0.0.x) are only meaningful inside the local network. When traffic leaves the LAN for the internet, the router performs Network Address Translation (NAT), replacing the private address with the network's single public IP address. That public IP is what the rest of the internet sees.

A Brief History

The first local area networks appeared in the late 1960s and early 1970s at universities and research labs. Institutions like MIT and Xerox PARC needed a way to let researchers share expensive hardware — printers, storage drives, and mainframe access — without running dedicated cables to every desk. The ALOHAnet project at the University of Hawaii (1971) pioneered wireless packet networking, while Xerox PARC developed Ethernet in 1973.

Ethernet was standardized as IEEE 802.3 in 1983, and its simplicity and reliability made it the dominant LAN technology. By the late 1980s, businesses were connecting PCs on Ethernet networks to share files and printers. The introduction of WiFi (IEEE 802.11) in 1997 removed the requirement for physical cables, and by the mid-2000s wireless LANs had become standard in homes, offices, cafes, and schools worldwide.

Equipment You Need for a LAN

Router

The router is the gateway between your LAN and external networks. It assigns IP addresses via DHCP, performs NAT, and often includes a built-in firewall that filters incoming traffic. In a home network, this single device is usually the only piece of networking hardware you need.

Switch

A switch expands the number of wired ports available on the network. If your router has four Ethernet ports but you need to connect eight devices, a switch solves that. Managed switches also support VLANs (virtual LANs) that segment traffic for security or performance reasons.

Network cables

Ethernet cables — typically Cat5e, Cat6, or Cat6a — carry data between devices, switches, and routers. Cat5e supports speeds up to 1 Gbps, while Cat6a handles 10 Gbps over distances up to 100 meters. For most home and small office LANs, Cat6 is the practical sweet spot.

Wireless access points

A wireless access point (WAP) broadcasts a WiFi signal so that laptops, phones, tablets, and IoT devices can join the network without cables. In larger spaces, multiple access points are deployed to eliminate dead zones. Mesh WiFi systems automate this by using several nodes that coordinate coverage across an entire building.

Server (optional)

Larger LANs — especially in businesses and schools — use a dedicated server to centralize file storage, user authentication, email, databases, and application hosting. Home networks rarely need a separate server since the router handles basic network management.

Types of Local Area Networks

Client/server LANs

In a client/server LAN, all devices (clients) connect to a central server that manages resources — file storage, printer access, user accounts, and application hosting. The server controls who can access what and handles the heaviest processing. An IT administrator configures security policies, access controls, and backups on the server.

This model scales well. Schools, hospitals, and corporations use client/server LANs because they support hundreds or thousands of devices with centralized management. Active Directory in Windows environments and LDAP-based systems in Linux environments are common tools for managing client/server networks.

Peer-to-peer LANs

In a peer-to-peer LAN, there is no central server. Every device on the network can share files and resources directly with every other device. Each machine acts as both a client and a server.

Peer-to-peer works well for small networks — a home with a few computers, or a small office with fewer than a dozen devices. It is simple to set up and requires no dedicated hardware beyond a router. However, it does not scale well: without centralized management, security and resource sharing become difficult as the number of devices grows.

Wired vs. Wireless LANs

Wired LANs

Wired LANs use Ethernet cables to connect devices to switches and routers. They deliver the highest speeds (up to 10 Gbps with Cat6a), the lowest latency, and the most reliable connections. Because the signal travels through a physical cable, wired connections are inherently more secure — an attacker would need physical access to the cable or switch to intercept traffic.

The tradeoff is convenience. Every device needs a cable run to a switch or wall jack, which limits mobility and adds installation cost. Wired LANs are standard in offices (especially for desktops and servers), data centers, and anywhere that maximum performance and reliability are non-negotiable.

Wireless LANs (WLANs)

Wireless LANs transmit data over radio waves using the IEEE 802.11 family of protocols — commonly known as WiFi. Devices connect through access points without any physical cable, which makes WLANs far more flexible and convenient. Laptops, phones, tablets, smart home devices, and IoT sensors all rely on wireless connections.

WiFi speeds have improved dramatically: WiFi 6 (802.11ax) supports theoretical throughput over 9 Gbps, and WiFi 7 (802.11be) pushes even higher. In practice, wireless speeds are lower than wired due to interference, distance, and shared bandwidth. Wireless LANs also require strong security — encryption via WPA3 is essential to prevent unauthorized access and eavesdropping.

LAN vs. MAN vs. WAN

A LAN is one layer in a hierarchy of network sizes. Understanding where it fits helps clarify how data moves from your device to the rest of the world.

• LAN (Local Area Network): Covers a single building or small campus, up to roughly 1 km. Speeds from 100 Mbps to 10 Gbps. Low cost, owned by one organization or household. Uses Ethernet and WiFi.
• MAN (Metropolitan Area Network): Covers a city or metro region, 5 to 50 km. Connects multiple LANs together using fiber optic cables. Speeds from 100 Mbps to 10 Gbps. Owned by organizations, municipalities, or service providers.
• WAN (Wide Area Network): Covers cities, countries, or the entire globe. The internet itself is the largest WAN. Uses leased lines, undersea cables, and satellite links. Owned by ISPs and telecom operators.

A LAN connects devices in a single location. A MAN connects LANs across a city. A WAN connects networks across regions or the world. When you browse a website, your data travels from your device through the LAN, potentially through a MAN, and out across a WAN to reach the destination server.

IP Addressing on a LAN

Every device on a LAN needs an IP address to communicate. The router's DHCP server automatically assigns private IP addresses from one of the reserved ranges defined in RFC 1918:

• 10.0.0.0 – 10.255.255.255 (10.0.0.0/8) — used by large enterprise networks
• 172.16.0.0 – 172.31.255.255 (172.16.0.0/12) — sometimes used in corporate environments
• 192.168.0.0 – 192.168.255.255 (192.168.0.0/16) — the most common range for home and small office networks

These addresses are not routable on the public internet. The router's NAT function maps all outgoing traffic to a single public IP address. This is why an IP lookup shows the same public IP for every device on your LAN — it is the address assigned to your router by your ISP, not the private address of your individual device.

If you want to understand the difference in detail, the public vs. private IP guide explains how NAT bridges the gap between internal and external addressing.

Benefits of a Local Area Network

Resource sharing

A LAN lets multiple devices share printers, scanners, storage drives, and an internet connection without duplicating hardware. A single network printer can serve an entire office floor, and a shared NAS (network-attached storage) device can centralize file backups for every computer on the network.

Fast data transfer

Because LAN traffic stays local, it avoids the latency and bandwidth limitations of the internet. Transferring a large file between two computers on the same Gigabit Ethernet LAN takes seconds, compared to minutes over a typical broadband connection. This speed advantage is why gaming, video editing, and database-heavy workflows benefit from wired LAN connections.

Centralized management

In client/server LANs, administrators can manage user accounts, security policies, software updates, and backups from one location. This reduces the effort of maintaining individual machines and ensures consistent security settings across all devices.

Cost efficiency

Sharing a single internet connection, printer, and storage system across many devices is far cheaper than providing each device with its own. Even the hardware cost of setting up a LAN is modest — a basic router and a few cables are enough for a home or small office.

Securing Your LAN

A LAN that connects to the internet is exposed to external threats. Whether it is a home network or a corporate environment, basic security practices are essential.

• Change default credentials: Routers ship with default admin usernames and passwords that are publicly documented. Change them immediately to prevent unauthorized access to your network settings.
• Use WPA3 encryption: If your router supports it, enable WPA3 for WiFi. If not, WPA2 with a strong passphrase is the minimum. Never use WEP — it is trivially breakable.
• Enable the router firewall: Most routers include a built-in firewall that blocks unsolicited incoming traffic. Make sure it is active.
• Keep firmware updated: Router manufacturers release firmware updates that patch security vulnerabilities. Check for updates regularly or enable automatic updates if available.
• Segment with VLANs: In business environments, VLANs separate sensitive devices (like servers and payment systems) from general-purpose devices (like employee laptops and guest WiFi). This limits the blast radius if one segment is compromised.
• Use a VPN for remote access: If employees need to access the LAN remotely, a VPN creates an encrypted tunnel that protects traffic from interception.

Common LAN Troubleshooting

When something goes wrong on a LAN, a few diagnostic steps can quickly narrow down the problem.

• No internet access: Check whether the issue affects all devices or just one. If all devices are offline, the problem is likely the router or the ISP connection. If only one device is affected, check its cable, WiFi connection, or IP configuration.
• Slow speeds: On wired connections, test the cable and port. On WiFi, check for interference from other networks, distance from the access point, or too many devices sharing the same channel.
• IP conflicts: Two devices assigned the same IP address will both lose connectivity. This usually means DHCP is misconfigured or a device has a manually set static IP that overlaps with the DHCP range.
• DNS resolution failures: If devices can ping IP addresses but cannot load websites, the DNS server configured on the router may be unreachable. Switching to a public DNS provider (like 1.1.1.1 or 8.8.8.8) can confirm this.

LANs and Network Diagnostics

Understanding your LAN is the first step in troubleshooting broader connectivity issues. These tools help identify where problems occur between your local network and the internet:

• IP Lookup — see your LAN's public IP address, the one your router presents to the internet via NAT.
• DNS Lookup — verify that domain names resolve correctly from your network.
• ASN Lookup — identify the autonomous system and ISP that provides your LAN's internet connection.
• WHOIS / RDAP — look up registration details for your public IP range.
• IP Blacklist Check — confirm that your public IP has not been flagged on reputation databases.

Frequently Asked Questions

What does LAN stand for?

LAN stands for local area network. The word "local" indicates that it covers a limited physical area — a home, a single building, or a small campus.

Is WiFi the same as a LAN?

WiFi is one way to connect to a LAN, but they are not the same thing. A LAN is the network itself — the collection of connected devices and the infrastructure linking them. WiFi is a wireless technology used to access that network. A LAN can also use wired Ethernet connections, and many LANs use both.

How many devices can a LAN support?

A typical home LAN supports up to 254 devices on a /24 subnet (192.168.1.0/24). In practice, home routers handle 20–50 devices comfortably. Enterprise LANs using larger subnets and managed switches can support thousands of devices across multiple VLANs.

Can I have more than one LAN in my home?

Yes. Many routers support guest networks, which create a separate LAN for visitors. You can also use VLANs or a second router to isolate IoT devices (smart speakers, cameras) from your main computers and phones for better security.
