What Is a Router? Definition, Functions, and Types
This guide covers: What Is a Router? Definition, Functions, and Types.

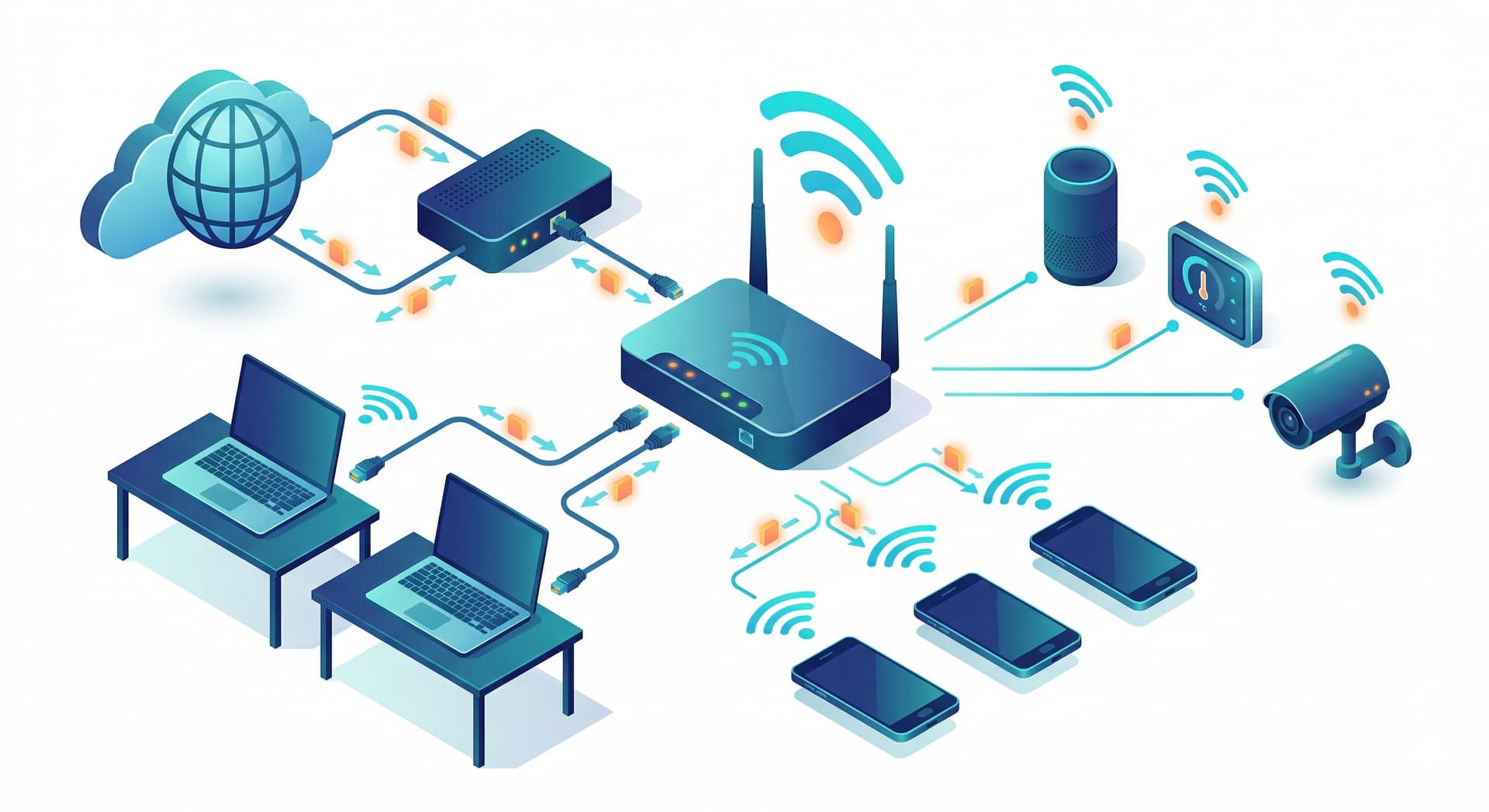

A router is the device that connects one network to another and decides where data should go next. In most homes, the router sits between your local devices and the wider internet. It makes it possible for multiple phones, laptops, TVs, and smart devices to share one internet connection, while also keeping local traffic organized inside your own network.
What a Router Actually Is
A router is a Layer 3 network device that forwards packets between different IP networks. That is the technical definition. In practice, it acts like the traffic director for your network. It reads the destination information in incoming packets and chooses the next path they should take.
A router usually sits at the boundary between your local area network and something outside it, such as your ISP or another internal network. That is why routers are essential in homes, offices, campuses, and large enterprise environments.
What a Router Does
Modern routers do more than pass packets along. Depending on the model, they often handle several jobs at once:
- Routing: forwarding traffic between networks
- NAT: allowing many private devices to share one public IP address
- DHCP: automatically assigning local IP addresses to devices
- Firewall rules: filtering inbound and outbound traffic
- WiFi access point features: in wireless routers, the same box often also broadcasts WiFi
- VPN features: some routers can terminate or pass VPN traffic
- Traffic management: quality of service, guest networks, parental controls, or device priority
So when people say "my router gives internet to my devices," what they usually mean is that the router is managing the connection between local devices and the upstream modem or provider network.
How a Router Works
When a device on your network sends data, the router receives the packet, looks at the destination IP, and checks how to forward it. If the destination is inside the same local network, the traffic may stay local. If the destination is outside the network, the router forwards it upstream toward your ISP or another gateway.
Home routers usually keep this simple. Enterprise and backbone routers do the same job at a much larger scale, often with far more advanced policies and dynamic routing information.
Routing tables
A router uses a routing table to decide where to send packets. Each entry tells it which network ranges are reachable through which interface, next hop, or gateway. Even small home routers use basic route logic, though the table is usually much simpler than in a large enterprise or ISP network.
NAT and address sharing
In most home networks, the router performs Network Address Translation. Your devices use private addresses internally, while the router presents one public-facing address to the internet. That is why every device in your home can browse the web at the same time even though websites only see one public IP.
If you want to compare the difference, read public vs private IP addresses.
DHCP and local addressing
Routers often run DHCP so your phone, computer, TV, or console receives a local IP automatically. Without DHCP, you would need to enter those settings manually on each device.
Types of Routers
Wired routers
Wired routers connect local devices using Ethernet. They are common in offices, labs, and environments where low latency and stable performance matter more than mobility.
Wireless routers
Wireless routers combine routing with a built-in WiFi access point. That is the most common type in homes. The wired uplink usually connects to the modem or provider handoff, while local devices join over WiFi or Ethernet.
Edge routers
Edge routers sit at the boundary between one network and another. In enterprise environments, that often means connecting an internal network to a provider network, data center, or external WAN.
Core routers
Core routers operate deeper inside large high-capacity networks. They are designed to move huge amounts of traffic quickly and reliably across major internal paths rather than serve as a simple home gateway.
Virtual routers
A virtual router performs routing in software rather than as a dedicated hardware appliance. Cloud platforms and virtualized data centers use this model heavily because it scales more easily than physical hardware in every location.
Router vs Modem vs Switch
These devices are related, but they are not interchangeable.
- Modem:connects your premises to the ISP's access technology
- Router: connects networks and manages traffic between them
- Switch: connects devices within the same local network
Many ISP boxes combine modem, router, switch, and WiFi access point functions into one device. That is convenient, but a separate router can offer stronger WiFi, better firmware control, and more advanced network settings.
Do You Need a Router for WiFi?
If you want multiple devices to share one internet connection, yes, a router is usually what makes that practical. If you connect one computer directly to a modem with Ethernet, that single device may reach the internet without a separate router. But as soon as you want local WiFi, multiple devices, or internal traffic management, a router becomes the normal solution.
In homes, the router is also what turns a basic provider link into a usable local network with private addressing, WiFi, and device separation.
Router IP Address vs Public IP Address
This part is often misunderstood. Your router login IP is usually a local private address such as `192.168.1.1`, `192.168.0.1`, or `10.0.0.1`. It is not normally your public internet IP.
- Router login IP: the local admin address used to open router settings
- Public IP: the address websites and external services see for your connection
If you want the admin address, check your default gateway. If you want the public-facing address, use our What Is My IP tool. For a step-by-step guide, see Router Login Guide.
Common Router Features Worth Understanding
- Dual-band or tri-band WiFi: separates traffic across different frequencies
- WPA3 security: stronger wireless protection on newer hardware
- Guest networks: isolates visitor devices from your primary network
- QoS: prioritizes traffic for gaming, calls, or work apps
- Mesh support: improves coverage in larger homes
- Port forwarding: exposes specific services when needed, though it can be blocked by CGNAT
Router Security Basics
A router sits in a sensitive position, so weak settings can affect every device behind it. Good starting steps include:
- Change the default admin password
- Use WPA2 or WPA3 with a strong WiFi passphrase
- Disable WPS if you do not need it
- Keep firmware updated
- Review remote administration and UPnP settings carefully
- Use guest networks or VLAN-style isolation for less trusted devices
If you want to harden the whole connection, follow up with internet security tips and firewall basics.
Router FAQs
Do you need both a router and a modem?
Usually yes if you want to share one connection across multiple devices. Some ISP units combine both functions in one box, but the underlying roles are still different.
Can a router work as a switch?
In many home setups, yes, because consumer routers usually include a small built-in switch for their LAN ports. But a dedicated switch is still better when you need more ports or advanced switching features.
What is WPS on a router?
WPS is a shortcut method for connecting devices to WiFi without typing the full password. It is convenient, but many security-conscious users disable it unless they specifically need it.
What is a mesh router?
A mesh router is part of a multi-node WiFi system that spreads coverage across a larger area. Instead of one access point serving the entire home, several coordinated nodes extend coverage more evenly.
Are all routers wireless?
No. Many are wireless, especially for home use, but wired-only, edge, core, and virtual routers are all common in other environments.
How a router decides where to send each packet
Inside the router, every incoming packet is matched against a routing table — a lookup of destination network prefixes mapped to the next-hop interface. The router compares the packet's destination IP against the table and forwards it accordingly:
- If the destination matches a connected local subnet (your home LAN), the router delivers the packet directly to the local device.
- If the destination is outside the local subnet, the router looks for a matching entry. In a home router this is almost always "default route" (
0.0.0.0/0) pointing to the ISP gateway. The packet goes out the WAN port. - If multiple routes match, the router picks the most specific one (longest prefix match). This is how policy routing and VPN split-tunnelling work: install a more-specific route for certain destinations so they take a different path.
Enterprise routers maintain thousands of routes learned via OSPF, BGP, or static configuration. Home routers usually have only a handful: the local LAN, the default route, and any configured static routes for VPN or backup links.
WiFi 6, WiFi 6E, and WiFi 7 explained
Router specs are dominated by the WiFi generation. Knowing what each generation actually delivers helps you avoid overspending or buying outdated hardware:
- WiFi 5 (802.11ac): 2014. 5 GHz only. Theoretical max 3.5 Gbps but real-world 400-900 Mbps. Still common in budget routers. Fine if your internet plan is under 500 Mbps.
- WiFi 6 (802.11ax): 2019. Adds OFDMA and MU-MIMO improvements that help when many devices connect at once. Theoretical max 9.6 Gbps; real-world 1-1.5 Gbps single-device. Best baseline pick in 2026 for households with 10-30 devices.
- WiFi 6E: WiFi 6 plus access to the 6 GHz band (where it is licensed — US, UK, EU). Less congestion than 2.4 GHz and 5 GHz because few devices use 6 GHz yet. Best for apartments where neighbour networks crowd 2.4/5 GHz.
- WiFi 7 (802.11be): 2024. Multi-Link Operation (MLO) uses 2.4/5/6 GHz simultaneously for one device. Theoretical max 46 Gbps. Real-world 2-4 Gbps with a compatible client. Only worth it today if your internet plan is 2 Gbps+ and you own WiFi 7 client devices (rare).
Reality check: most home internet plans cap at 500 Mbps to 1 Gbps. A good WiFi 6 router saturates that at typical distances. Buying WiFi 7 today is mostly future-proofing.
Mesh routers vs traditional single-router setups
Mesh is the right answer for homes larger than about 2,000 square feet, multi-floor layouts, or houses with thick walls. For smaller flats and apartments, a single high-quality router still wins on simplicity and price:
- Single router (best for <2,000 sq ft, single floor): simpler, cheaper, one device to manage. A WiFi 6 router placed centrally covers most apartments and small houses.
- Mesh (best for larger or multi-floor): 2-3 nodes spread coverage evenly. Devices roam between nodes without dropping connections. Popular options: Eero, Google Nest Wifi, Netgear Orbi, ASUS ZenWifi, TP-Link Deco.
- Wired backhaul (best for performance): if you can run Ethernet between mesh nodes, each node uses wired uplink instead of wireless backhaul. This doubles throughput because the WiFi radios are dedicated to client traffic, not mesh-to-mesh links.
- Range extenders (avoid if possible): the old-style range extender cuts bandwidth in half and creates a separate SSID. Mesh systems superseded these — pick mesh if you need multi-room coverage.
What to check in your router admin panel
After logging in to your router (typically 192.168.1.1 or 192.168.0.1), these are the settings worth reviewing once a year for security and performance:
- Firmware version:check "System > Firmware Update". Manufacturers patch vulnerabilities regularly; outdated firmware is the most common router compromise vector.
- Admin password: change from the factory default. The default
admin/adminor label-printed password is widely known and trivially exploited. - WiFi password and security mode: WPA3 if all your devices support it, otherwise WPA2-AES. Avoid WPA/WEP entirely — they are broken.
- Remote management: disable unless you actively need it. A router with remote admin enabled is a target for credential-stuffing attacks.
- WPS: disable. The 8-digit PIN is brute-forceable in hours.
- UPnP: convenient for games and consoles (auto-opens ports) but a security weakness. Leave on if you game; disable if you have only laptops/phones.
- DNS settings:the default is your ISP's DNS. Consider switching to 1.1.1.1 (Cloudflare) or 9.9.9.9 (Quad9) for faster resolution and better privacy.
- Guest network: enable a separate SSID for visitors and IoT devices. Isolates them from your main network so a compromised smart bulb cannot reach your laptop.
