What Is Network Topology? Types, Layouts, and Examples
Learn what network topology means, the difference between physical and logical topology, and how star, mesh, tree, ring, bus, and hybrid designs compare.
Network topology is the layout of devices and connections in a network. It describes how nodes such as computers, switches, servers, and routers are arranged and how traffic flows between them. Topology matters because the shape of a network affects speed, reliability, troubleshooting, scalability, and even security.
What Network Topology Means
A network is more than a pile of connected devices. The way those devices are connected changes how efficiently the network works. Network topology is the structural pattern behind those connections. It helps answer questions such as:
- Which devices connect directly to each other?
- Where does traffic converge?
- Which links are critical single points of failure?
- How easy is it to add new devices later?
This is why topology is a foundational concept in computer networking. Before a network can scale cleanly, it needs a layout that supports the intended use case.
Physical vs Logical Topology
Physical topology
Physical topology describes the actual arrangement of cables, switches, access points, and devices. If you walk into an office and trace where every cable goes, you are looking at the physical topology.
Logical topology
Logical topology describes how traffic behaves, even if the physical layout looks different. Two devices may sit on the same switch but be isolated by VLAN rules. Two remote offices may behave like one local network through a VPN overlay. Logical topology is about communication paths, not just cable placement.
Why Topology Matters
Topology has direct operational impact. A poor layout can create bottlenecks, increase downtime, or make troubleshooting painful. A good one improves resilience and keeps network growth manageable.
- Performance: some layouts reduce collisions and bottlenecks better than others
- Reliability: redundant paths can prevent one cable failure from taking down the whole network
- Scalability: certain designs expand more cleanly than others
- Security: clearer segmentation makes policy enforcement easier
- Troubleshooting: well-defined structures are easier to map and diagnose

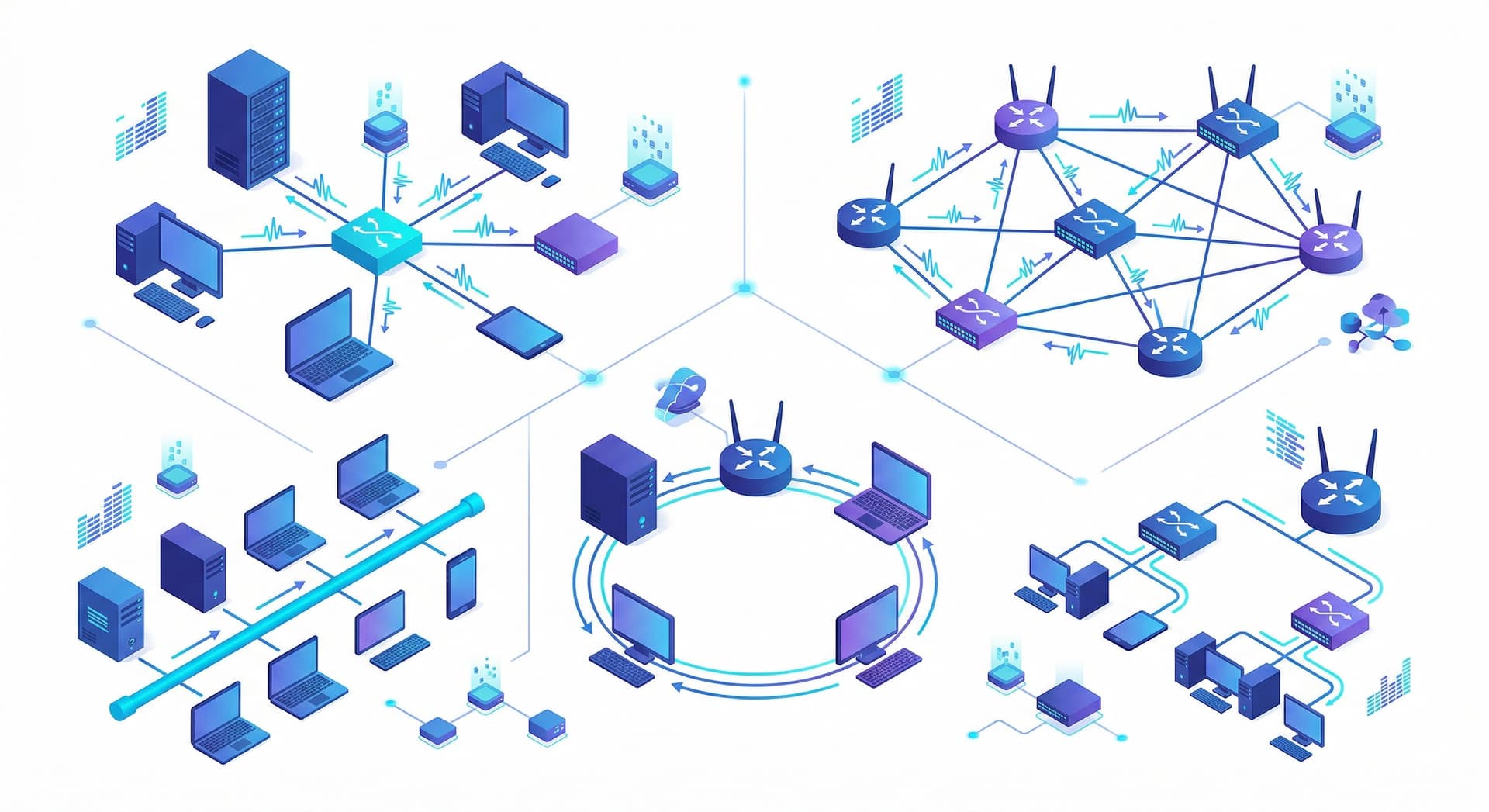

Common Types of Network Topology
Point-to-point topology
This is the simplest topology: one dedicated link between two devices or endpoints. It is common in direct uplinks, leased circuits, and certain wireless or satellite paths.
Best for: simple dedicated connections. Risk: if the only link fails, the connection is gone.
Bus topology
In a bus topology, devices share one common backbone cable. It is cheap and simple conceptually, but it creates strong dependency on the central line. If the backbone fails, the network can collapse.
Bus designs are historically important, but they are far less common in modern business networks because they do not scale or isolate faults especially well.
Star topology
In a star topology, all devices connect to a central device, usually a switch or hub. This is the most common modern layout for Ethernet LANs. If one endpoint cable fails, the rest of the network usually keeps working.
Best for: offices, homes, classrooms, and most local networks. Risk: the central device becomes critical.
Ring topology
Ring topology arranges devices in a loop so traffic moves from one node to the next around the ring. Some implementations use token passing to reduce collisions and organize who can transmit at a given time.
Rings can be efficient under specific conditions, but a break in the loop can cause major disruption unless there is built-in redundancy.
Tree topology
Tree topology extends the star model into layers. Branch networks connect upward into larger aggregation points, which in turn connect to a central core or trunk. This is common in schools, enterprise campuses, and large office environments.
Tree layouts are attractive when you need clear hierarchy and room to grow, but the upper layers become especially important to resilience.
Mesh topology
In a mesh topology, devices or nodes have multiple interconnections. Full mesh means every node connects to every other node. Partial mesh means only some of those direct paths exist.
Mesh is powerful because it offers alternate paths. If one link fails, traffic can often take another route. That makes mesh useful in high-availability environments and in some wireless and WAN scenarios.
Hybrid topology
Hybrid topology combines different designs to fit real operational needs. A large organization may use star topology inside each office, tree structure across buildings, and mesh-like redundancy between core sites. Real networks are often hybrid because business requirements are mixed.
How Topology Relates to LAN, MAN, and WAN Design
Topology is not a replacement for network type. It is one layer of the design. A LAN may use a star topology. A metropolitan area network may use ring or tree-like layouts for resilience across a city. A WAN may use partial mesh between major sites.
The same organization can use several topologies at once depending on whether it is designing access layers, campus cores, or long-distance transport.
Choosing the Right Topology
There is no universally best topology. The right one depends on priorities:
- Budget: mesh offers excellent resilience but costs more than simpler designs
- Growth plans: tree and hybrid models often scale more naturally
- Reliability needs: critical systems benefit from redundant paths
- Operational simplicity: star topologies are easier to manage for many environments
- Traffic behavior: some layouts fit east-west internal traffic better than others
For example, a small office usually benefits from a star layout built around one main switch and router. A data center or carrier network may justify much more redundancy because downtime is more expensive.
Topology and Network Performance
Topology affects latency, throughput, fault isolation, and congestion. A well-designed topology avoids unnecessary traffic concentration and provides clean forwarding paths. This matters whether the traffic is normal office work, video calls, storage replication, or internet access over fiber links.
The layout also influences how quickly a team can diagnose problems. Clear structure reduces guesswork when tracing paths, checking uplinks, or isolating failure domains.
How topology shows up during real troubleshooting
Topology becomes most useful when something breaks. A flat, poorly documented network turns every outage into guesswork. A well-understood topology tells you where to look first.
- One room loses connectivity but the rest of the office is fine. In a star or tree design, that usually points to one access switch, uplink, patch panel, or local power problem rather than the whole network core.
- Several branches lose one shared application at the same time. In a tree or hybrid topology, that often suggests a problem in an aggregation layer, WAN handoff, or central service rather than many unrelated site failures.
- Users report intermittent slowness instead of a total outage. That often points to congestion, spanning-tree events, weak redundancy behavior, or a bottleneck at a highly connected node.
- One link failure causes a surprisingly large outage. That is usually a topology lesson: the network had a hidden single point of failure that diagrams or monitoring did not make obvious.
In other words, topology is not abstract theory. It is one of the fastest ways to narrow the blast radius of a problem before you start checking cables, interfaces, logs, or upstream providers.
Common topology mistakes and edge cases
- Designing everything around one central device without backup. Star layouts are easy to operate, but that core switch or router becomes critical.
- Adding devices over time without updating diagrams. An undocumented topology is much harder to troubleshoot when a failure crosses teams or sites.
- Confusing physical layout with logical behavior. VLANs, overlays, VPNs, and software-defined routing can make traffic behave very differently from what the cabling alone suggests.
- Overbuilding mesh where the team cannot operate it. Redundancy is valuable, but extra links and failover paths also increase operational complexity.
- Ignoring failure domains. A topology that looks tidy on paper can still collapse badly if many important systems depend on one rack, one power source, or one uplink path.
Topology Tools and Mapping
Good diagrams and monitoring tools make topology useful in practice. Teams usually rely on three categories of tooling:
- Discovery and mapping: shows how devices are connected
- Monitoring: highlights slow links, outages, and overloaded devices
- Configuration management: helps keep large networks consistent over time
The point is not just to draw pretty diagrams. It is to understand the live structure of the network and react faster when something changes or breaks.
Useful tools when topology is part of the problem
When you suspect that path design or network shape is contributing to an issue, these tools help connect the diagram to something measurable:
- IP Address Lookup to confirm the public-facing identity and provider behind the current path.
- ASN Lookup to see which network operator is announcing a range when traffic moves across upstream boundaries.
- Reverse DNS to inspect hostnames on infrastructure IPs while mapping devices and roles.
- DNS Lookup to separate path/layout issues from plain name-resolution problems.
- Hostname to IP when a diagram, monitoring system, or ticket refers to names rather than raw addresses.
Wireless mesh and wired mesh share a word, but solve different problems
The word "mesh" appears in two very different conversations and that causes endless confusion. A wired mesh in a data center or carrier backbone is about giving routers many physical links to each other so traffic can survive cable cuts and switch failures. It is a redundancy and capacity story, measured in tens of gigabits and designed for protocols like BGP, OSPF, or IS-IS to find the best path.
A wireless mesh at home (Eero, Google Nest Wifi, Netgear Orbi, TP-Link Deco, Asus ZenWifi) is about covering a house with Wi-Fi by daisy-chaining access points that share one logical SSID. The "mesh" part refers to the radio backhaul between nodes, not between routers in a carrier sense. From a topology standpoint, a home mesh is closer to a star or tree pattern with a wireless uplink than to a true full mesh.
Knowing the difference matters when someone says "we should mesh the network" — the data center engineer and the home-Wi-Fi installer are thinking about completely different problems.
Cloud and data-center topology has new vocabulary
Cloud networks reuse the same underlying topology ideas but rename them for the cloud era. A few words you will see if you ever look at AWS, Azure, or GCP networking documentation:
- Spine-leaf: a modern alternative to traditional three-tier (core/distribution/access) tree topology in data centers. Every leaf switch connects to every spine switch, giving predictable two-hop latency between any two leaves. It is essentially a full-mesh between the two layers.
- Hub-and-spoke: the cloud version of star topology. A central VPC or VNet holds shared services (firewall, DNS, VPN gateway) and other VPCs/VNets connect to it as spokes. Common in enterprise multi-account cloud landing zones.
- Transit gateway / virtual WAN: a managed service that converts hub-and-spoke into something closer to partial mesh by providing on-demand routing between many VPCs without operating the hub yourself.
- Anycast: not exactly a topology, but a routing trick where the same IP is announced from many locations and BGP picks the closest. Used heavily by CDNs and DNS providers.
The shapes underneath are still star, tree, and mesh. The cloud renames them and automates the wiring.
Network Topology FAQs
Which topology is the most reliable?
Mesh is usually the most resilient because it offers multiple paths. But it is also more expensive and complex than simpler alternatives.
Is star topology the same as tree topology?
No. Tree topology is more like layered stars connected into a hierarchy, while a simple star has one central point with endpoints around it.
Can software-defined networking change topology?
Yes. SDN can create logical traffic behavior that does not match the physical cable layout, which is why physical and logical topology should always be considered separately.
Why is star topology so common?
Because it is straightforward, easier to troubleshoot, and usually isolates endpoint failures better than bus or ring designs.
Does topology matter in home networks?
Yes, even if the layout is simple. Most home networks are effectively star-based around one router or switch, and that structure affects WiFi coverage, cable placement, and device performance.
